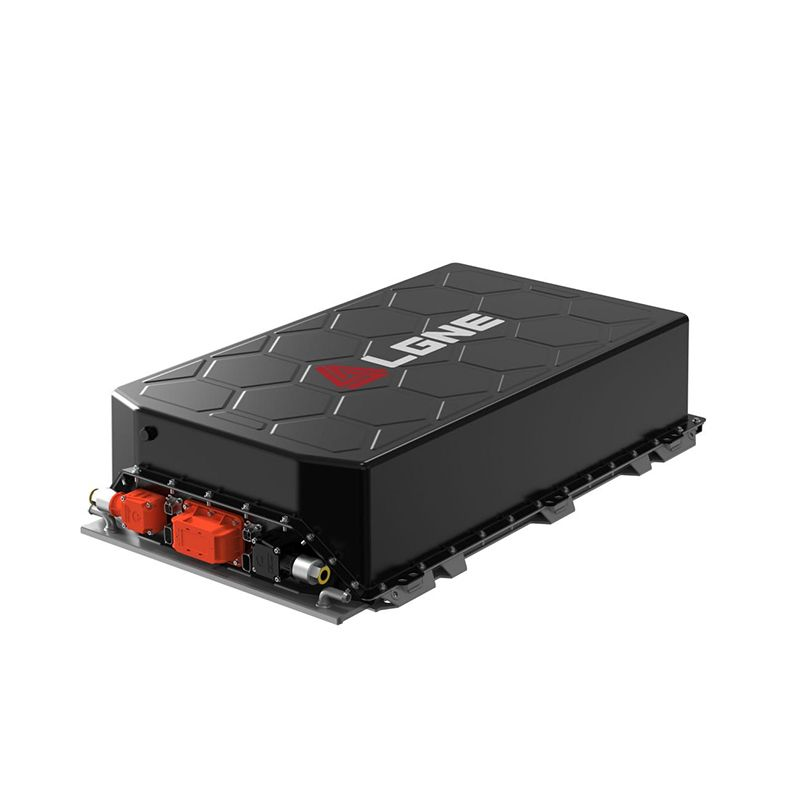

How Does a High-Voltage Lithium-Ion Battery Pack Work?

High-voltage lithium-ion battery packs represent a cutting-edge battery technology known for their high energy density, long cycle life, rapid charging capabilities, and low self-discharge rate. These advantages make them indispensable in a wide range of industries, including electric vehicles (EVs), renewable energy storage systems, aerospace, and advanced industrial applications.

So, what makes a high-voltage lithium-ion battery pack work, and why is it different from conventional batteries?

Structure of a High-Voltage Lithium-Ion Battery Pack

A high-voltage lithium-ion battery pack is composed of multiple single cells connected in series and parallel to achieve the desired voltage and capacity. Each individual cell consists of four main components:

Positive Electrode (Cathode): Typically made from materials such as lithium cobalt oxide (LiCoO₂), lithium nickel manganese cobalt oxide (NMC), or lithium iron phosphate (LiFePO₄). These materials provide high energy storage and stability.

Negative Electrode (Anode): Commonly constructed using graphite, silicon, or a combination of both. The anode stores lithium ions during charging.

Separator: A thin, porous layer made of materials like polypropylene (PP) or polyethylene (PE) that prevents direct contact between the electrodes while allowing lithium ions to pass through.

Electrolyte: Usually a lithium salt dissolved in an organic solvent, facilitating the movement of lithium ions between electrodes.

How Charging and Discharging Works

During discharge, lithium ions move from the positive electrode to the negative electrode through the electrolyte. Simultaneously, electrons flow externally from the negative to the positive electrode, creating an electric current that powers devices or electric vehicles.

During charging, this process is reversed: lithium ions migrate back to the positive electrode, and electrons flow from the positive electrode to the negative electrode. This continuous movement of lithium ions between the electrodes constitutes the fundamental charge-discharge cycle of the battery.

Why High Voltage Matters

High-voltage lithium-ion battery packs operate at voltages typically exceeding 300V, significantly higher than standard lithium-ion batteries. This higher voltage allows for:

Higher energy density: More energy can be stored in the same physical space.

Greater power output: Ideal for applications like electric vehicles that require strong acceleration and sustained performance.

Efficiency: Reduces energy losses in transmission for large-scale energy storage systems.

However, higher voltage also brings increased safety risks, such as overheating, overcharging, and over-discharging. Therefore, advanced protective measures are critical.

Ensuring Safety and Reliability

To guarantee safety and longevity, high-voltage battery packs integrate multiple systems:

Thermal Management System (TMS): Maintains optimal battery temperature, prevents overheating, and improves overall efficiency.

Battery Management System (BMS): A high-precision monitoring system that tracks voltage, current, temperature, and state-of-charge of each cell. The BMS also controls charging and discharging to maximize battery lifespan.

Robust Casing and Protective Devices: High-strength enclosures protect cells from mechanical impacts, short circuits, and environmental hazards.

Applications and Future Prospects

High-voltage lithium-ion battery packs are increasingly powering electric vehicles, hybrid cars, drones, energy storage solutions, and even aerospace systems. As technology evolves, improvements in materials, energy density, and safety systems will further expand their use.

With ongoing innovations and growing demand for clean energy and high-performance electronics, high-voltage lithium-ion battery packs are poised to play an increasingly critical role in shaping the future of energy storage and transportation.
