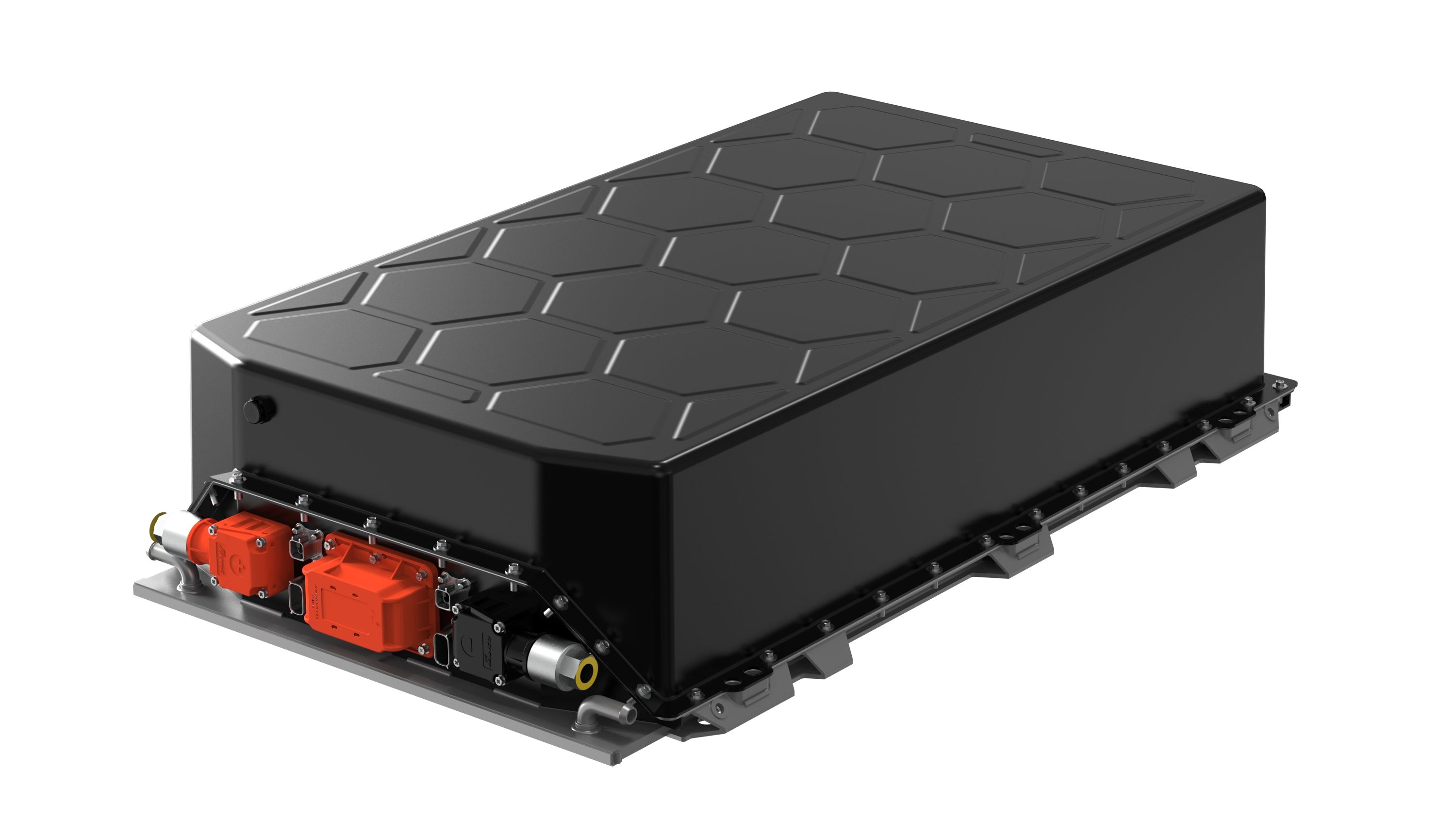

C-PACK is a mechanically robust, structurally integrated pack platform,
characterised by a larger physical envelope to support industrial-grade fixation, defined load paths, and interface flexibility.
It is designed with clearly defined electrical, mechanical, and thermal interfaces, enabling predictable integration into partner-defined system architectures.
System-level configuration, control strategies, and application integration are implemented by the OEM or system integrator.
Parameters
| Model | 173C-PACK |
| Cathode Materials | LFP |
| Nominal Voltage | 202.86V |
| Nominal Capacity | 173Ah |
| Power Energy | 35kWh |
| Thermal Management | Heating Film+liquid cooling |
| Charging temperature | 0~60℃ |
| Operating Temperature | -30~60℃ |
| The charging ratio | 1C |
| The discharge rate | 1C |
| Weight | 224±20.7KG |
| Cycle Life | ≥4000 |
| Protection Level | IP67 |
| Dimension (L*W*H) | 1060*630*240mm |
Other voltage platforms and energy configurations within the same pack platform are available upon request.
Why choose LGNE customized lithium battery?
Platform-based engineering
LGNE designs battery modules and packs as standardized platforms with defined mechanical, electrical and thermal interfaces, enabling predictable integration into OEM and system integrator architectures.
Engineering-to-production alignment
Design assumptions are developed in alignment with manufacturing constraints, ensuring consistency from prototype builds through controlled series production.
Series-ready manufacturing capability
LGNE's products are manufactured under controlled processes with defined tolerances and repeatable assembly, supporting stable quality across production batches.
Clear system responsibility boundaries
LGNE supplies integration-ready battery subsystems, while system-level configuration, control strategies and application integration remain with OEMs and system integrators.
Industrial-grade durability validation
Products are validated for vibration, thermal cycling and long-duty operation typical of off-highway, mining and commercial vehicle environments.
