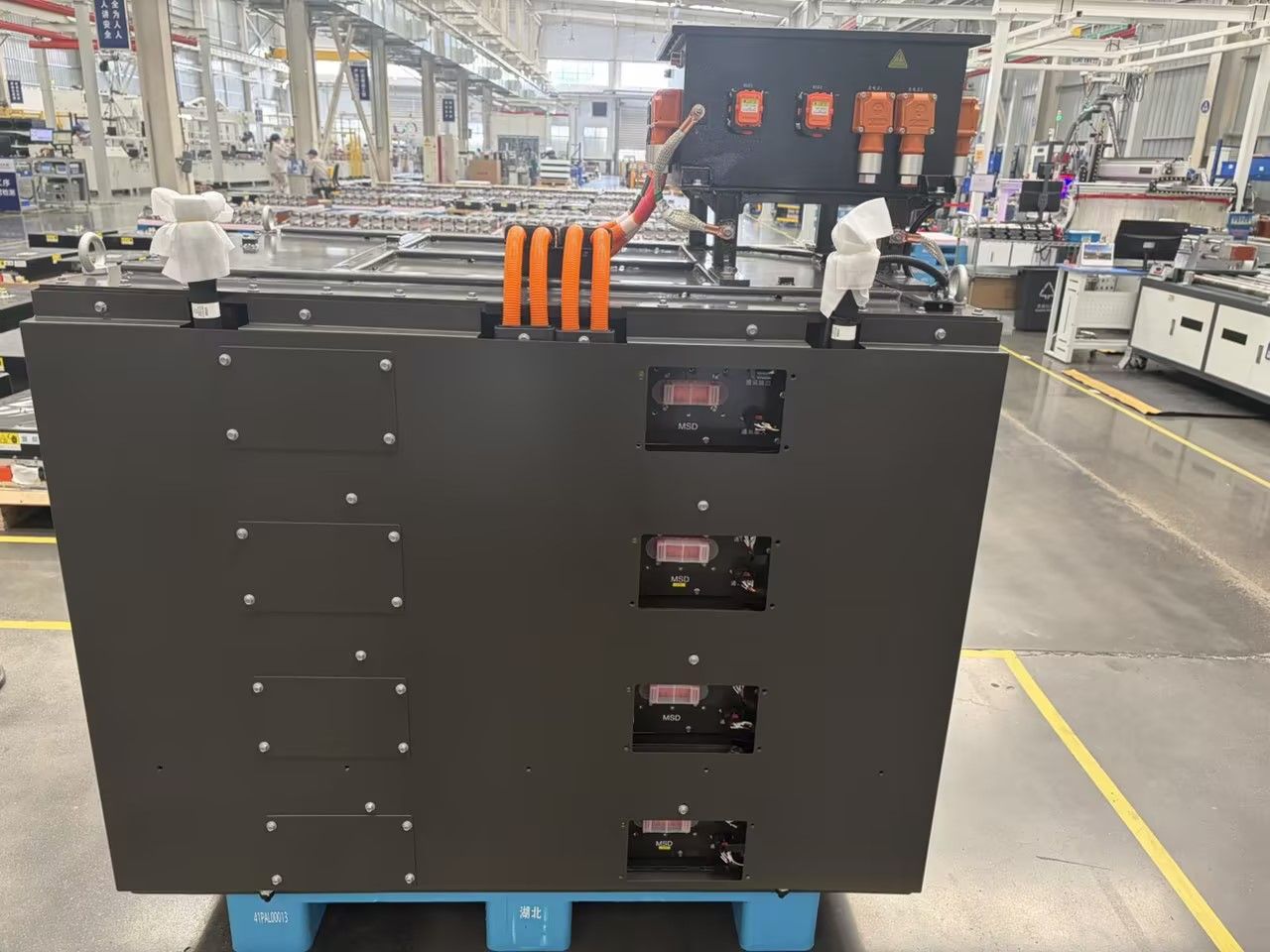

LGNE's Stacked Battery Platform is an integrated high-voltage battery solution for heavy-duty and industrial applications.
It is designed to deliver higher system energy density, easier installation, and stronger structural performance under demanding operating conditions.
With its integrated stacked architecture,
the platform helps simplify electrical, mechanical and thermal integration while improving layout efficiency.
Compared with conventional separated configurations,
it offers higher integration, improved vibration resistance, and lower system cost.
Typical applications include wheel loaders, excavators, terminal tractors, material handlers, and mobile energy storage systems.
Parameters
| Model Number | 324-375kWh |
| Cathode Materials | LFP |
| Nominal Voltage | 579.6V |
| Nominal Capacity | 648Ah |
| Power Energy | 375Wh |
| Thermal Management | Liquid cooling+heating |
| Charging temperature | 0~60℃ |
| Operating Temperature(℃) | -30~60℃ |
| The charging ratio | 1C |
| The discharge rate | 1C |
| Cycle Life | ≥4500 |
| Protection Level | IP67 |
| Dimension (L*W*H) | 1400 x 1220 x 265mm |
Other voltage platforms and energy configurations within the stacked platform are available upon request.
Why choose LGNE customized lithium battery?
Platform-based engineering
LGNE designs battery modules and packs as standardized platforms with defined mechanical, electrical and thermal interfaces, enabling predictable integration into OEM and system integrator architectures.
Engineering-to-production alignment
Design assumptions are developed in alignment with manufacturing constraints, ensuring consistency from prototype builds through controlled series production.
Series-ready manufacturing capability
LGNE's products are manufactured under controlled processes with defined tolerances and repeatable assembly, supporting stable quality across production batches.
Clear system responsibility boundaries
LGNE supplies integration-ready battery subsystems, while system-level configuration, control strategies and application integration remain with OEMs and system integrators.
Industrial-grade durability validation
Products are validated for vibration, thermal cycling and long-duty operation typical of off-highway, mining and commercial vehicle environments.
