Details

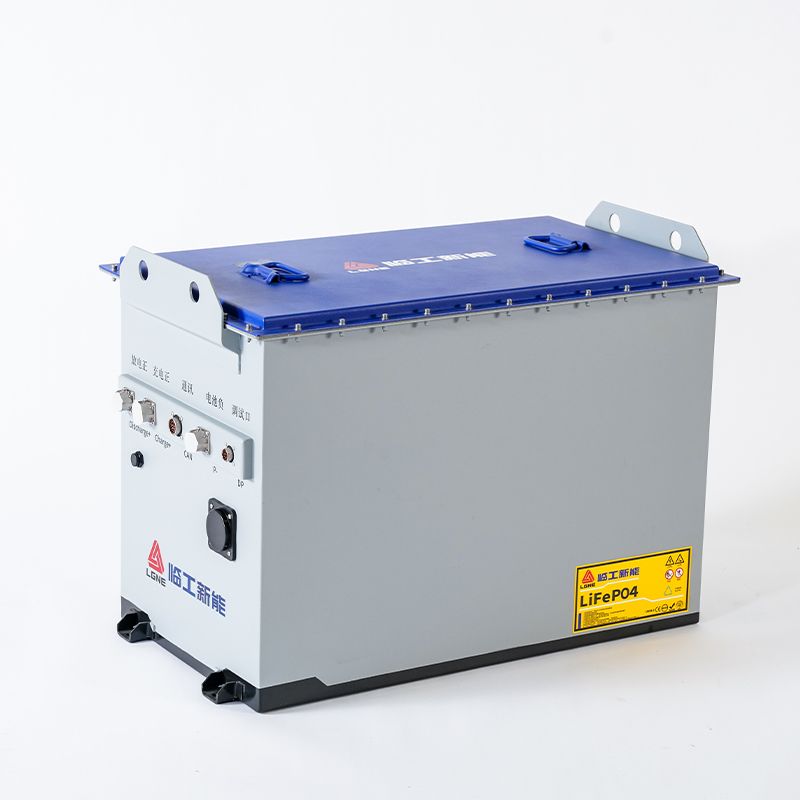

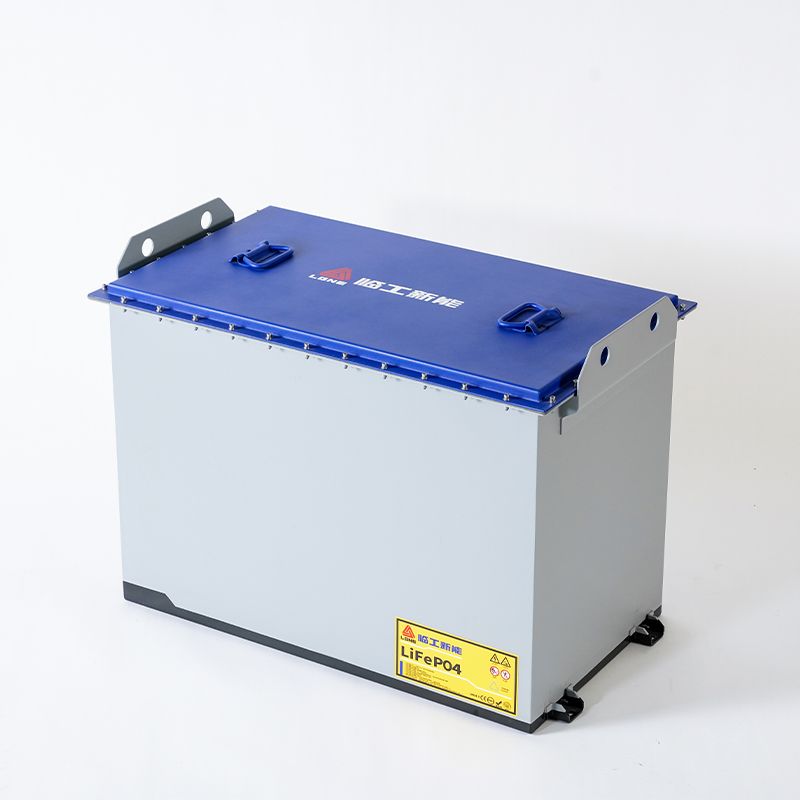

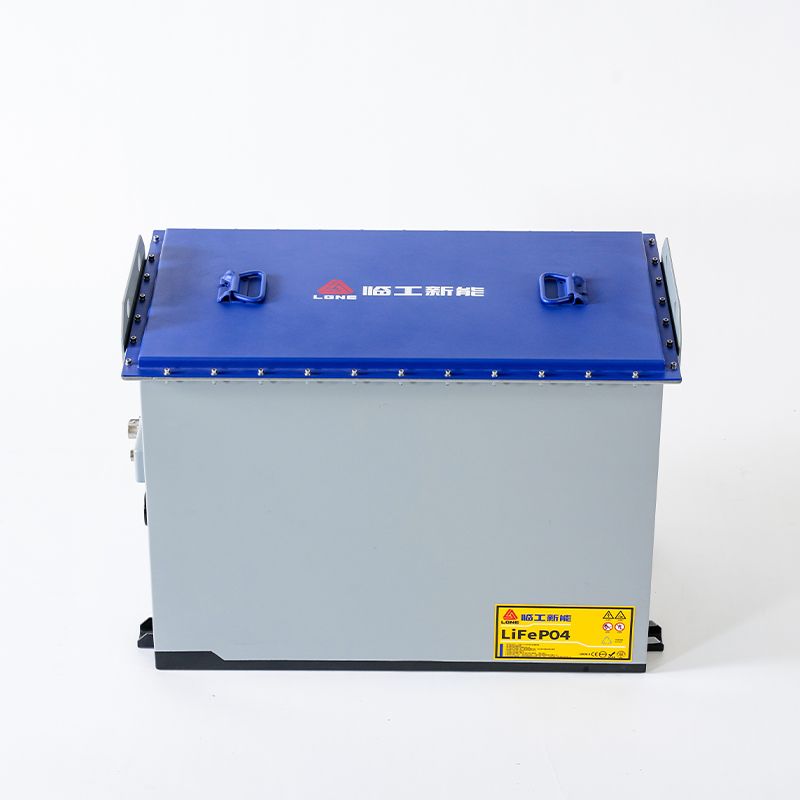

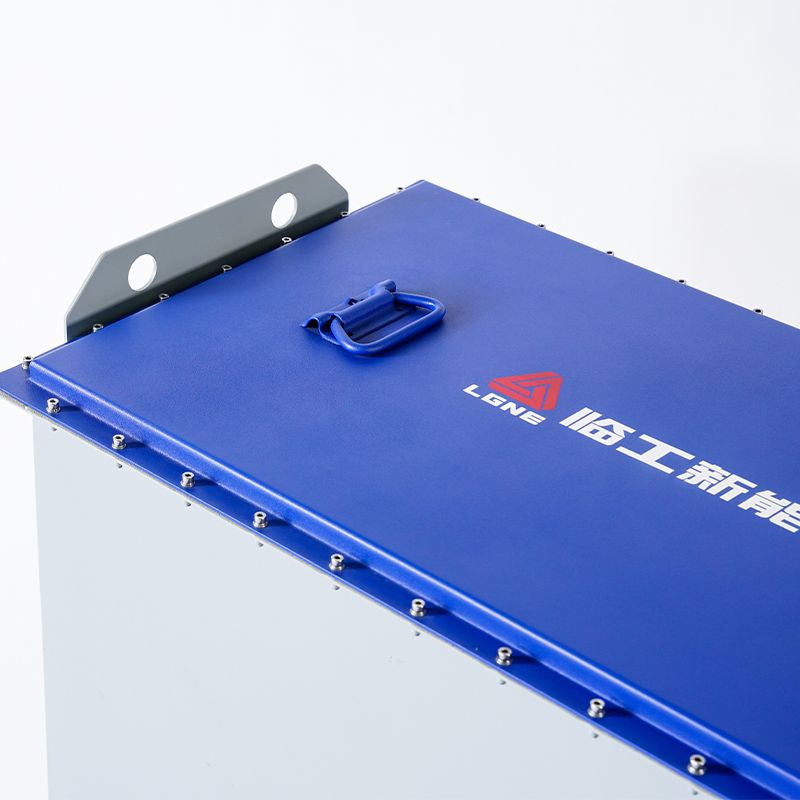

LGNE's low-voltage lithium battery system for Aerial Work Platforms (AWP) is manufactured to support OEM- and integrator-defined system architectures, ensuring structural stability, vibration resistance,
and reliable performance under dynamic operating conditions. Designed for boom lifts operating in confined and outdoor environments, the system supports:
• Stable discharge under variable load
• Reinforced enclosure for vibration and tilt conditions
• Standard communication compatibility within OEM-defined systems
• Configurable within platform-defined mechanical and electrical boundaries
• Production-level consistency across batches
Parameters
| Cathode Materials | Nominal Voltage | Nominal Capacity | Electric Energy | Thermal Management | Charging temperature | Operating Temperature(℃) | The charging ratio | The discharge rate | Weight | Cycle Life | Ingress Protection | Single package size |
| LFP | 76.8V | 230Ah | 17.664kWh | Heating Film | 0~60℃ | -30~60℃ | 0.5C | 1C | 178±3KG | ≥4000cycles | IP67 | 851*494*613 mm |
Capacity range: 17–70kWh
Configuration may vary according to project requirements.
Why choose LGNE customized lithium battery?
Platform-based engineering
LGNE designs battery modules and packs as standardized platforms with defined mechanical, electrical and thermal interfaces, enabling predictable integration into OEM and system integrator architectures.
Engineering-to-production alignment
Design assumptions are developed in alignment with manufacturing constraints, ensuring consistency from prototype builds through controlled series production.
Series-ready manufacturing capability
LGNE's products are manufactured under controlled processes with defined tolerances and repeatable assembly, supporting stable quality across production batches.
Clear system responsibility boundaries
LGNE supplies integration-ready battery subsystems, while system-level configuration, control strategies and application integration remain with OEMs and system integrators.
Industrial-grade durability validation
Products are validated for vibration, thermal cycling and long-duty operation typical of off-highway, mining and commercial vehicle environments.
