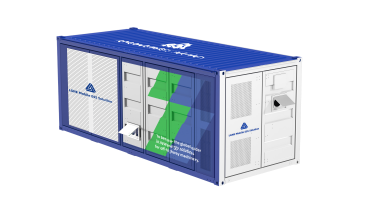

The LGNE 522 kWh Mobile Energy Storage System is a transportable, high-capacity power solution designed for construction sites, temporary charging stations, equipment rental operations and locations with limited grid capacity.
The system integrates a 522 kWh LFP battery, high-power DC charging, bidirectional AC power conversion, thermal management, fire protection and intelligent system control within a compact enclosure. It supports up to 320 kW total DC charging output and 250 kW bidirectional AC power, enabling both rapid charging of electric equipment and temporary AC power supply.
With two independent DC charging outputs, a 400 V / 630 A bidirectional AC interface and a 230 V auxiliary output, the system can support electric excavators, loaders and other off-highway equipment. Charging interfaces, AC connections and power configurations can be adapted according to project requirements.
The LGNE 522 kWh Mobile Energy Storage System is a transportable, high-capacity power solution designed for construction sites, temporary charging stations, equipment rental operations and locations with limited grid capacity.
The system integrates a 522 kWh LFP battery, high-power DC charging, bidirectional AC power conversion, thermal management, fire protection and intelligent system control within a compact enclosure. It supports up to 320 kW total DC charging output and 250 kW bidirectional AC power, enabling both rapid charging of electric equipment and temporary AC power supply.
With two independent DC charging outputs, a 400 V / 630 A bidirectional AC interface and a 230 V auxiliary output, the system can support electric excavators, loaders and other off-highway equipment. Charging interfaces, AC connections and power configurations can be adapted according to project requirements.
Field deployment with construction equipment and charging infrastructure.
522 kWh LFP Battery Capacity
Up to 320 kW Total DC Charging Output
Two Independent DC Charging Outputs
250 kW Bidirectional AC Power
400 V / 630 A Bidirectional AC Interface
230 V / 10 A Auxiliary Output
Integrated Liquid-Cooling System
Integrated Aerosol Fire-Suppression System
IP54 Protection Rating
Compact and Transportable Enclosure
Configurable Charging and AC Interfaces
Suitable for Construction Sites and Temporary Power Applications
Mobile charging support for electric construction equipment.
| Parameter | Specification |
|---|---|
| Nominal Energy Capacity | 522 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| DC Charging Input | 2 × 1000 V DC / 250 A |
| DC Charging Output | 2 × 1000 V DC / 250 A |
| Maximum Total DC Output Power | 320 kW |
| AC Interface | 1 × 400 V / 630 A Bidirectional AC Interface |
| Rated AC Power | 250 kW |
| Auxiliary Output | 1 × 230 V / 10 A |
| Dimensions | 3,205 × 1,740 × 2,120 mm |
| Reference Weight | Approximately 7,000 kg |
| Fire-Suppression System | Aerosol Fire Suppression |
| Protection Rating | IP54 |
| Charging Interface Location | Rear of the Enclosure |
| Charging Interface Configuration | Two Independent DC Charging Outputs |
| Interface and Power Options | Configurable According to Project Requirements |
Technical note: The 630 A value indicates the AC interface current rating. Rated AC system power is limited to 250 kW.
Rapid Charging for Electric Excavators and Loaders
Construction-Site Equipment Charging
Temporary Charging-Station Deployment
Grid-Constrained Sites
Equipment Rental and Fleet Operations
Temporary and Emergency AC Power Supply
Renewable-Energy Integration and Peak Shaving
Typical application: rapid charging for electric excavators and other off-highway equipment.
Charging interfaces, AC connections and power configurations can be customized for project requirements.
Available Configurations
| Parameter | 261 kWh | 418 kWh | 522 kWh | 862 kWh | 1,044 kWh | 1,254 kWh |
|---|---|---|---|---|---|---|
| Dimensions (mm) | 2,930 × 1,500 × 1,655 | 3,205 × 1,740 × 2,120 | 3,205 × 1,740 × 2,120 | 2,990 × 2,440 × 2,590 | 2,990 × 2,440 × 2,590 | 2,990 × 2,440 × 2,590 |
| Reference Weight | 3.44 t | 5 t | 7 t | 12 t | 13 t | 14 t |
| DC Charging Input | 1 × 1000 V DC / 250 A | 2 × 1000 V DC / 250 A | 2 × 1000 V DC / 250 A | 4 × 1000 V DC / 250 A | 4 × 1000 V DC / 250 A | 2 × 1000 V DC / 250 A |
| AC I/O Interface | 400 V / 315 A 230 V / 10 A auxiliary | 400 V / 630 A | 400 V / 630 A 230 V / 10 A auxiliary | 400 V / 630 A | 400 V / 630 A | 400 V / 630 A |
| Rated AC Power | 125 kW | 250 kW | 250 kW | 500 kW | 750 kW | 500 kW |
| DC Charging Output | 2 × 1000 V DC / 250 A | 2 × 1000 V DC / 250 A | 2 × 1000 V DC / 250 A | 4 × 1000 V DC / 250 A | 4 × 1000 V DC / 250 A | 4 × 1000 V DC / 250 A |
| Maximum Total DC Output Power | 160 kW | 320 kW | 320 kW | 800 kW | 800 kW | 640 kW |
| Charging Interface Location | Rear | Rear | Rear | Rear | Rear | Rear |
| Fire-Suppression System | Aerosol | Aerosol | Aerosol | Aerosol | Aerosol | Aerosol |
| Protection Rating | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
Note: AC interfaces are bidirectional input/output interfaces. Charging connectors, AC connections and power configurations can be adapted according to project requirements.
Values shown are reference configurations and are subject to final technical confirmation.
